Name: Time ADHX 45 UDH Carbon Disc Frameset
SKU: 1763925
Availability: InStock

Return to previous page

Sale

Original price was: $4,000.00.Current price is: $1,999.00.

Color

Size

Clear

SKU: N/A

Please see thumbnail gallery images for ultra high resolution frame images.

Have Questions? Text us at 707 365 8126

We can answer all your frame related questions!

Brand New With Warranty!

The most advanced frame production on the market!

45mm Max Tire

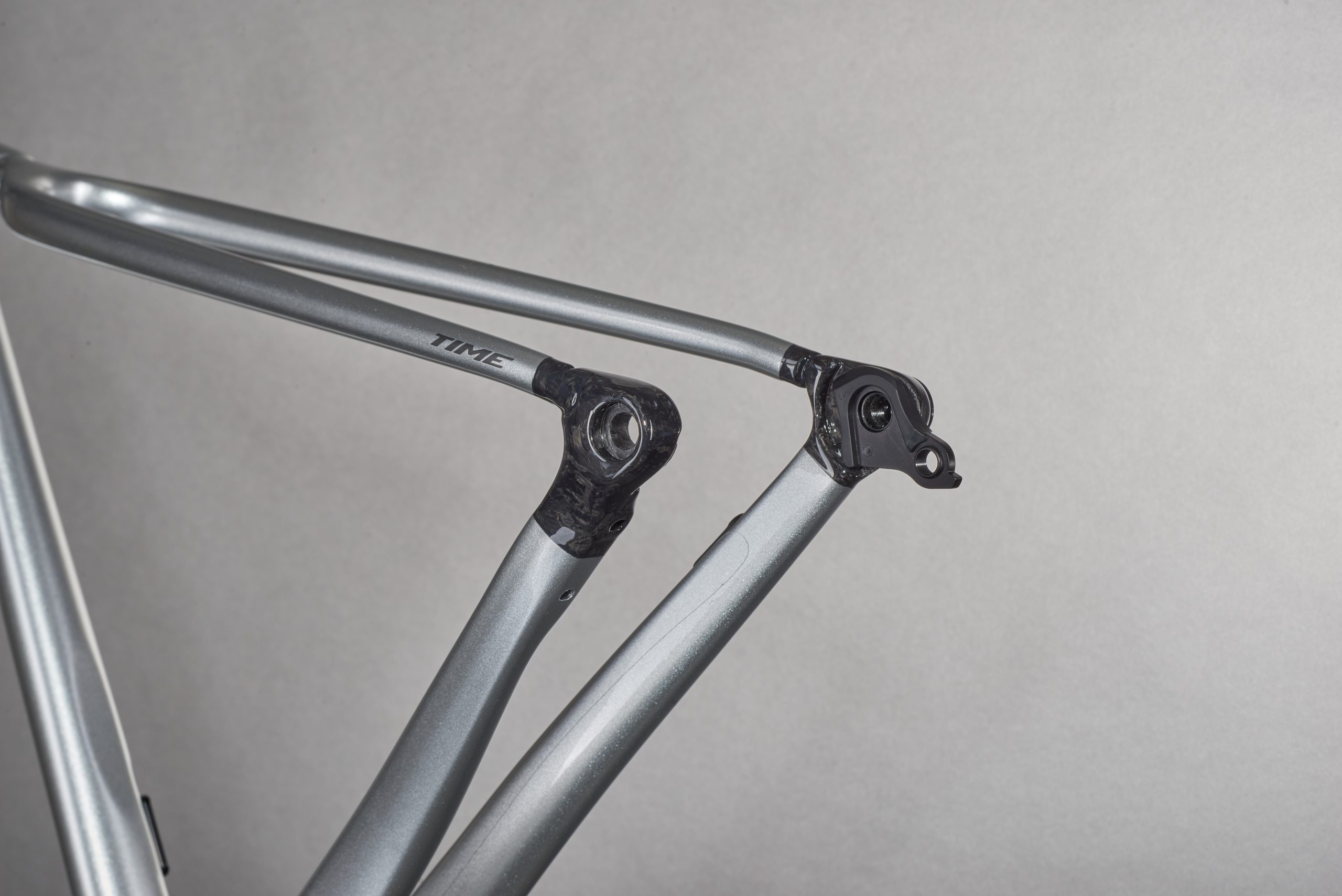

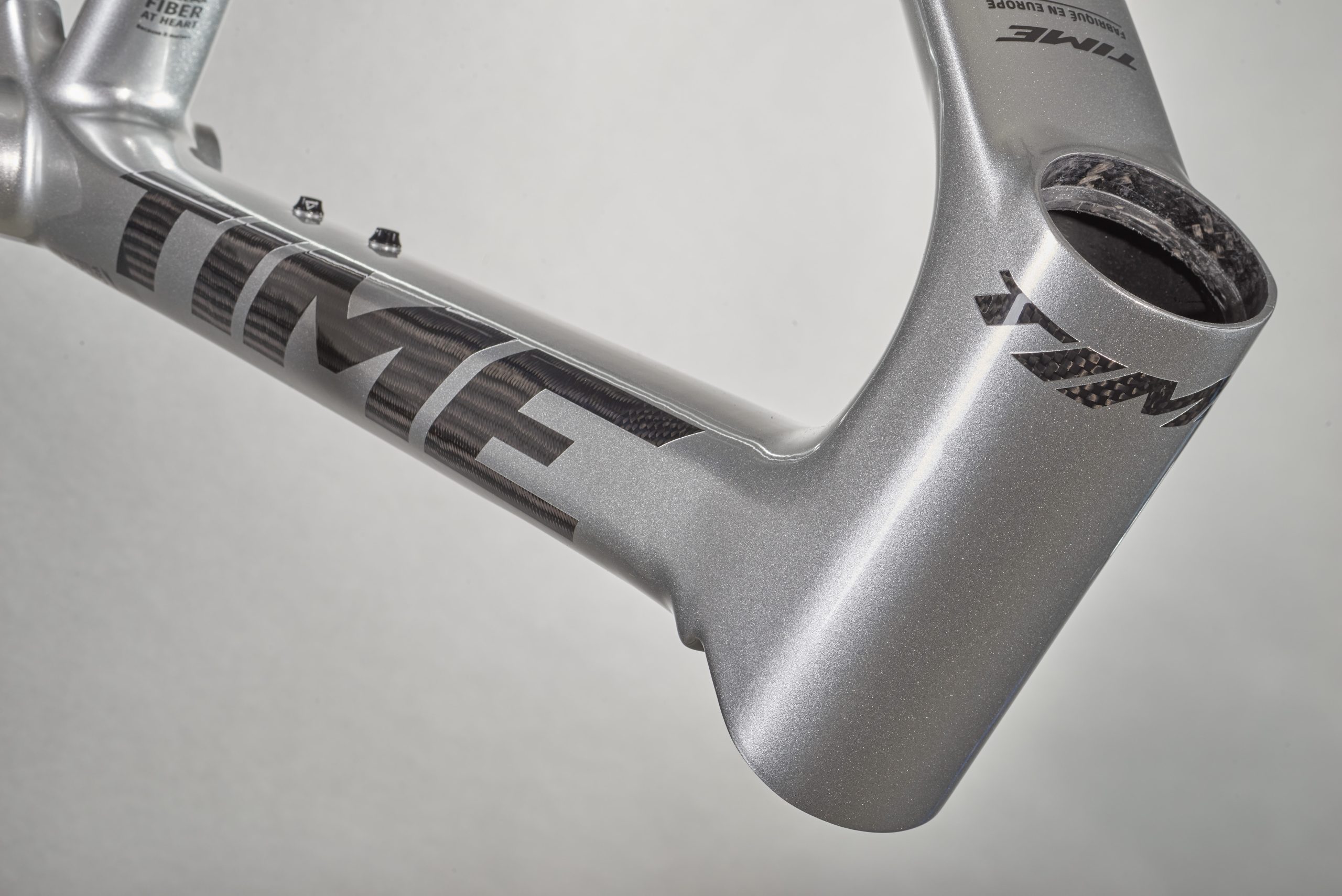

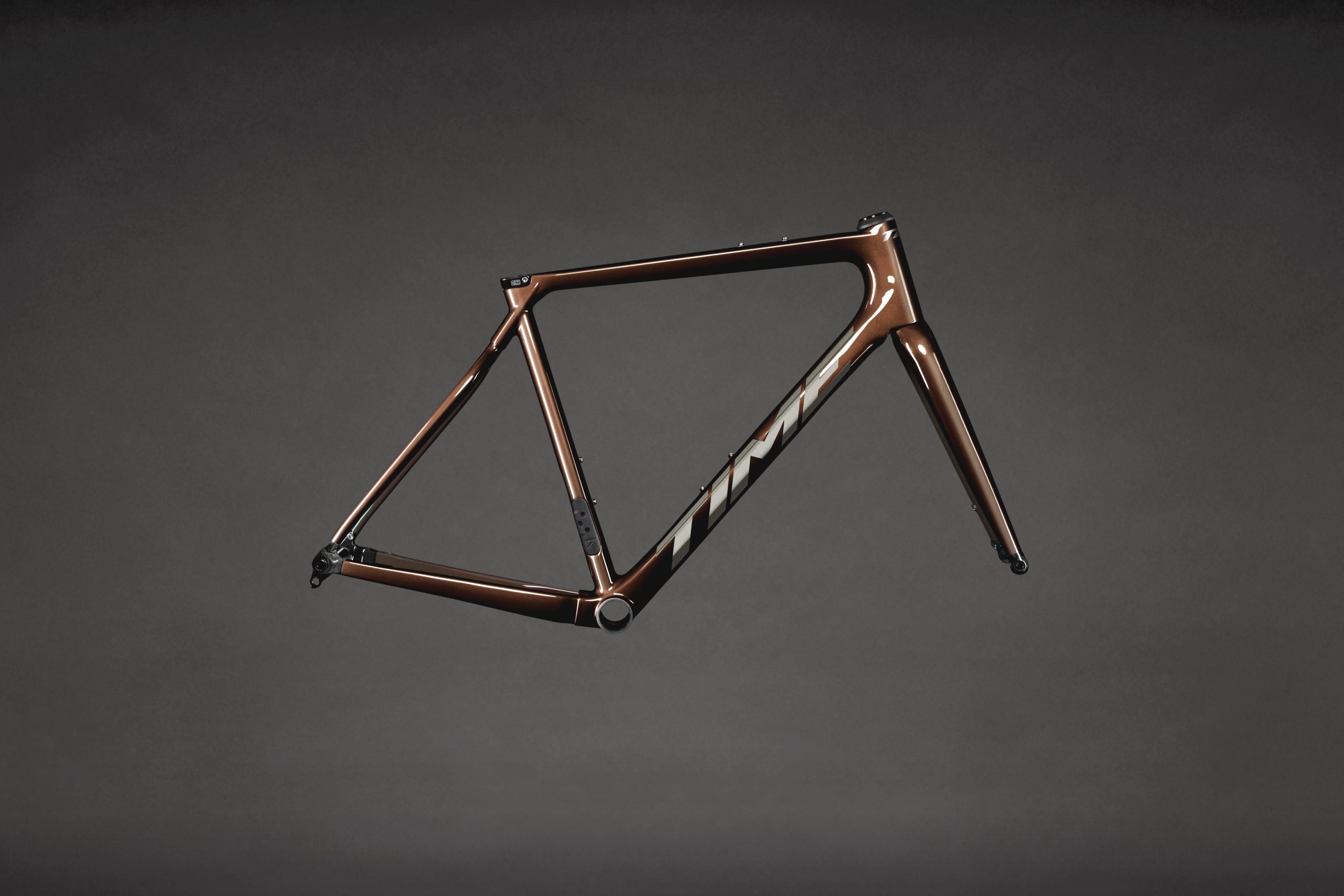

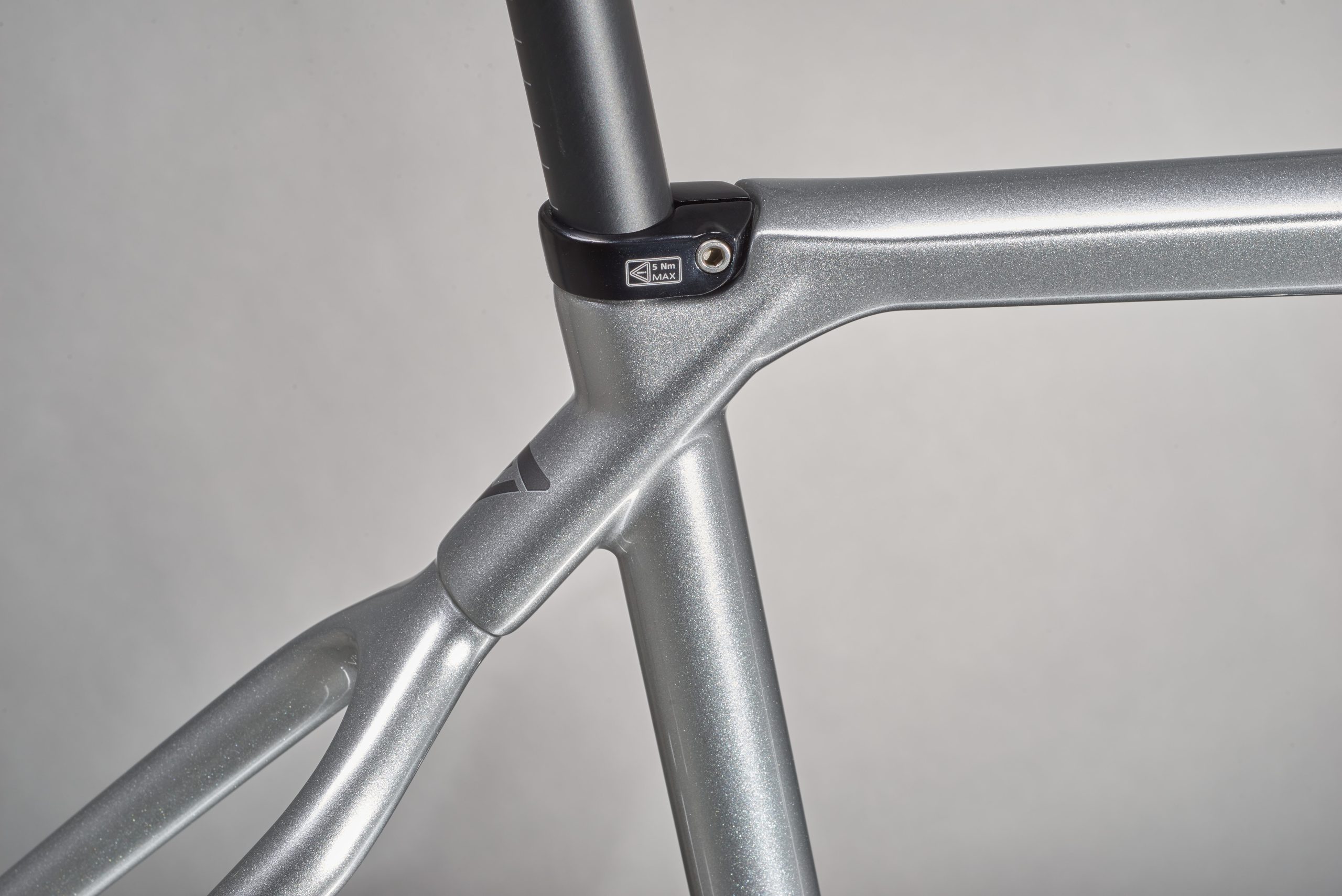

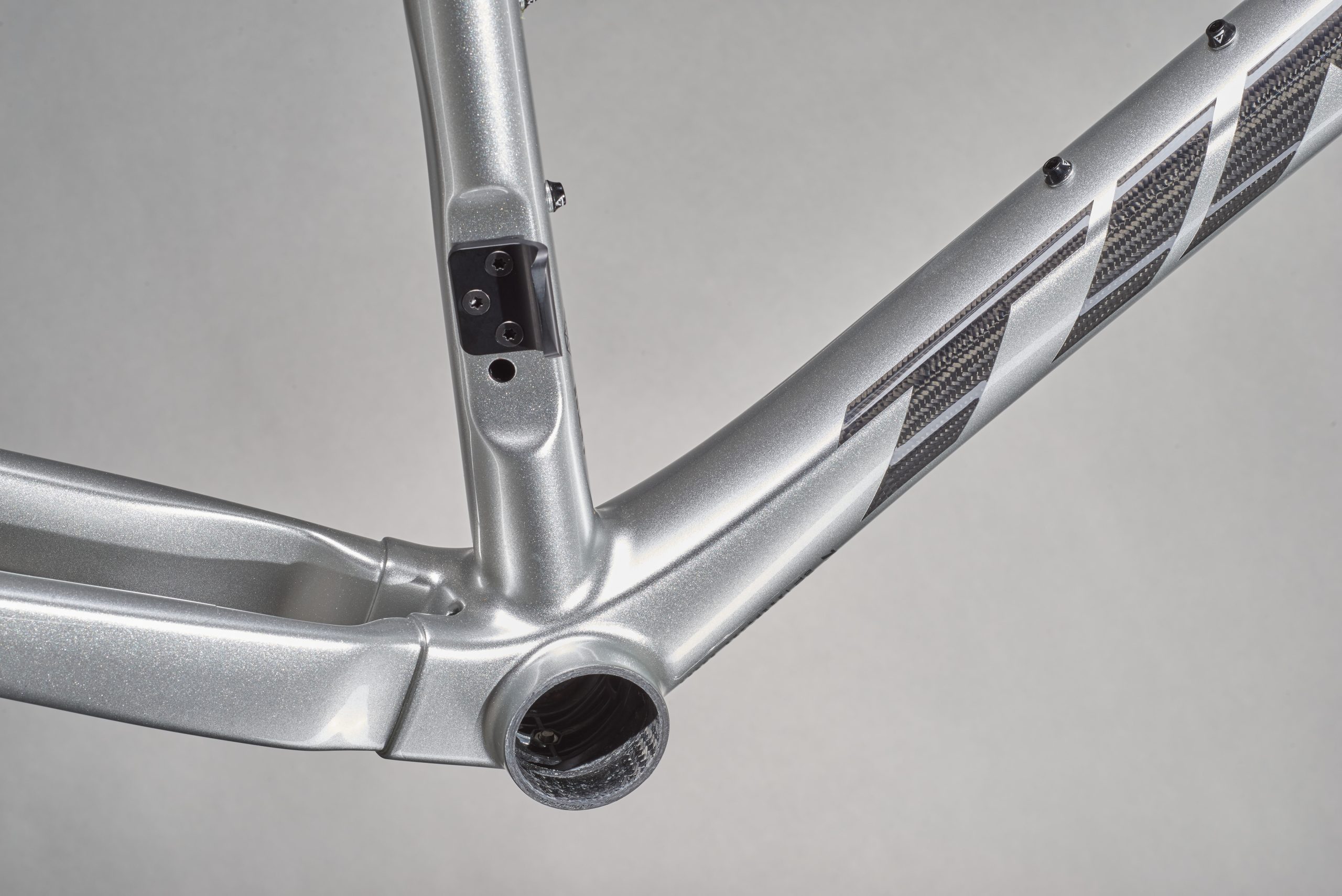

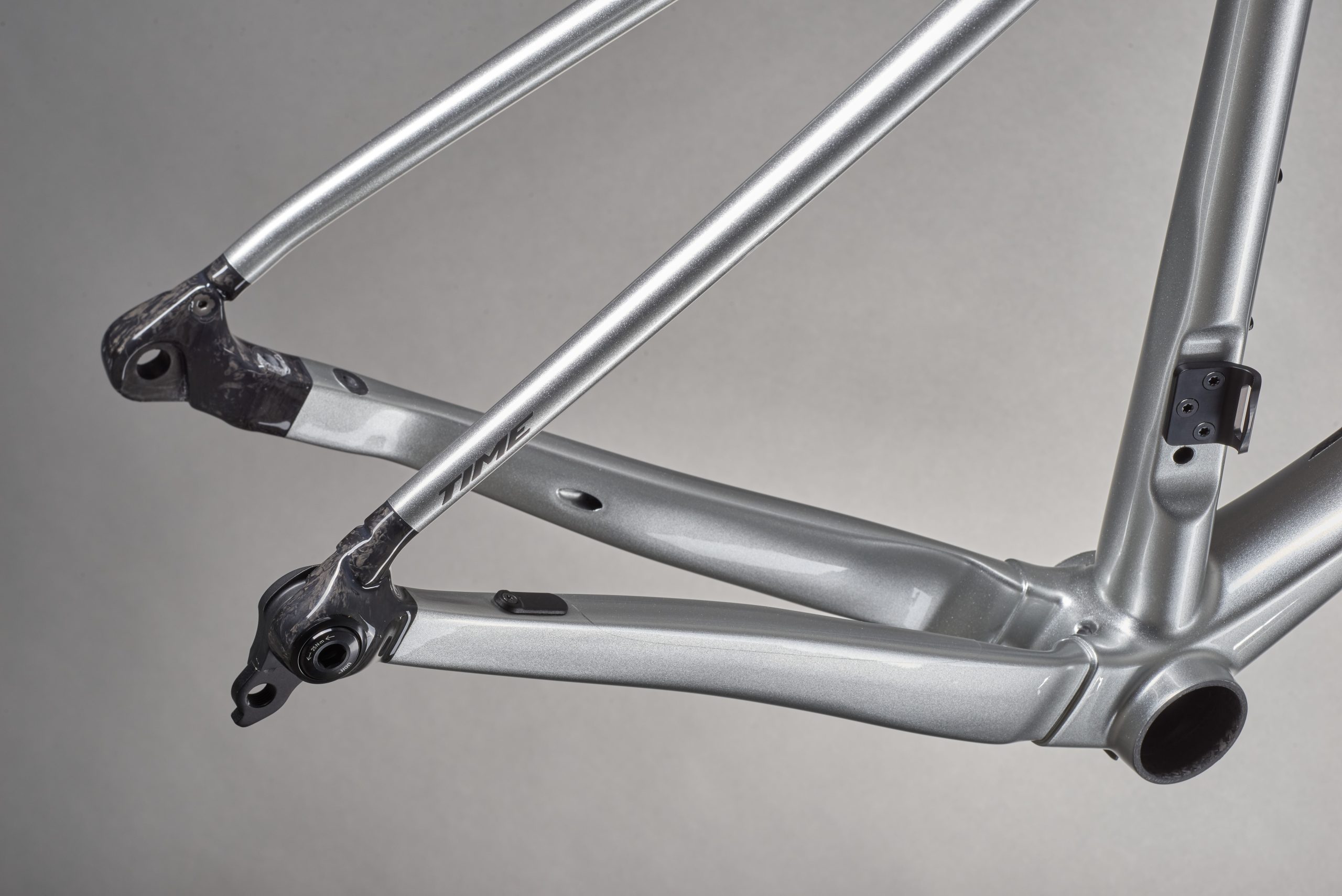

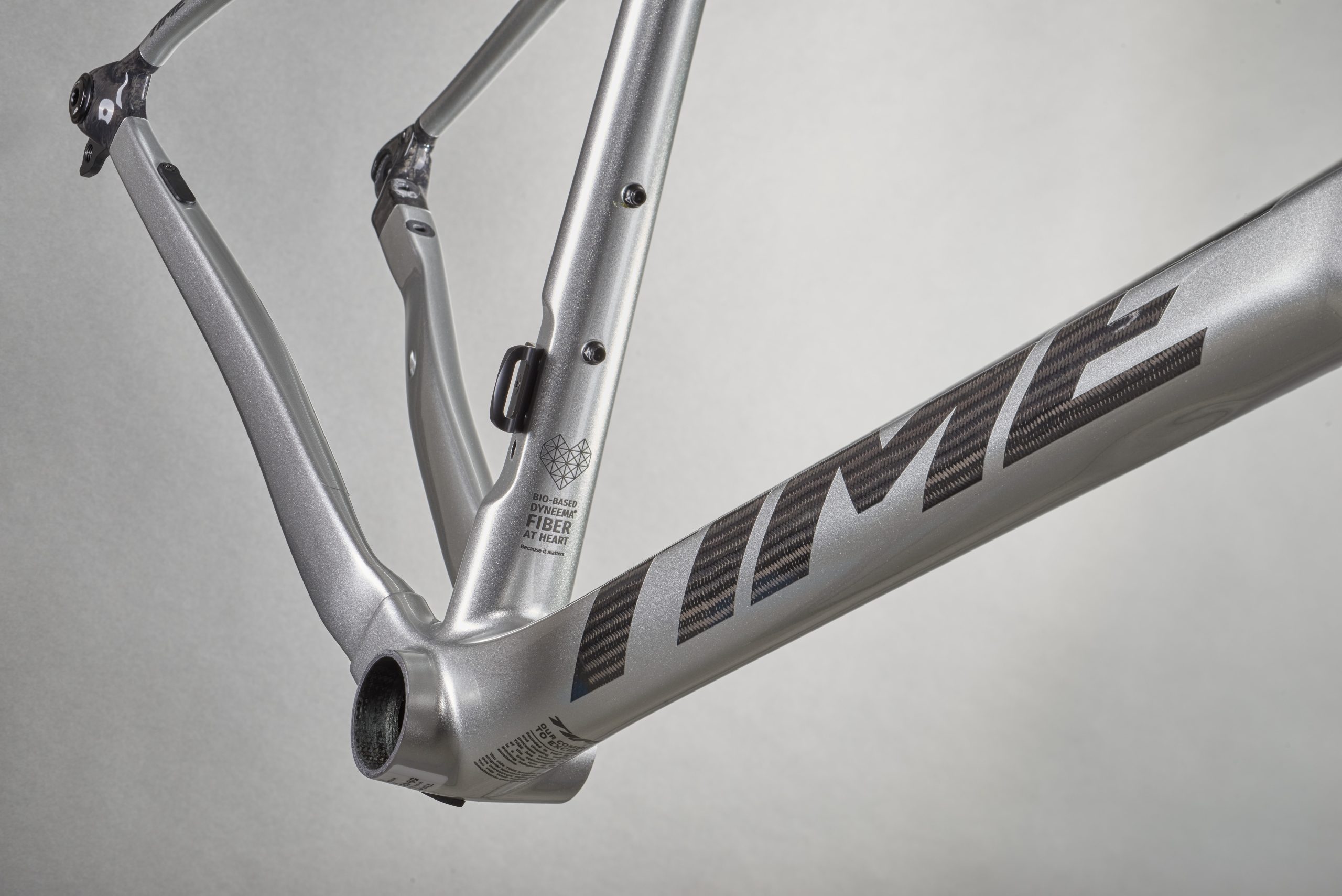

See thumbnails for up close detailed images.

Frames are final sale!

Cannot ship to Hawaii Or Alaska.

Color	V43 Brilliant Silver, V44 Chestnut
Size	L, M, S, XL, XS

ADHX 45 FRAME SPECIFICATIONS
FRAME MATERIAL BCS Carbon Fiber – Dyneema® Enhanced	THRU AXLES 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
SIZES XS, SM, MD, LG, XL	SEATPOST DIAMETER ø27.2mm
FORK STEERER TUBE Tapered 1-1/8″ to 1-1/2″	SEATPOST CLAMP Proprietary ADHX Alloy
HEADSET BEARINGS Top and Bottom 1-1/2″ (with internal routing compression ring)	SHIFTING Compatible with Electronic and Standard Shifting Systems
WHEEL SIZE 700c/650b	FRONT DERAILLEUR 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit
MAXIMUM TIRE WIDTH 700×32-45c Gravel Tire 650x50c Gravel Tire (not all tire/rim combinations fit with adequate clearance – check for appropriate fit)	REAR DERAILLEUR UDH
BOTTOM BRACKET PF BB386	BRAKE TYPE Front and Rear Flat Mount Disc
DISC HUB STANDARD 12x100mm F, 12x142mm R	ROTOR SIZE 140/160mm with Adapter
